0Hammond XE-1 Keyboard







 SPECIFICATIONS

 Keyboard: 61 keys with initial touch

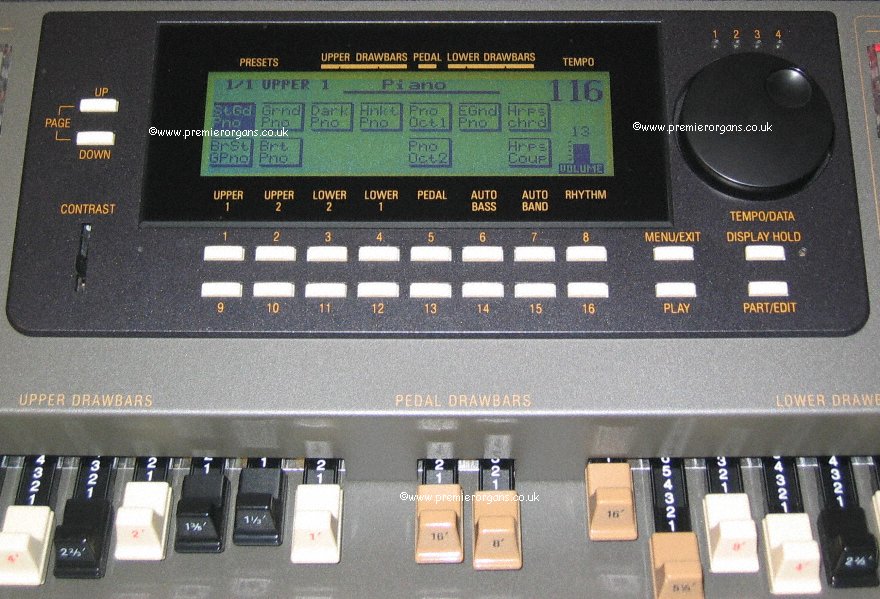

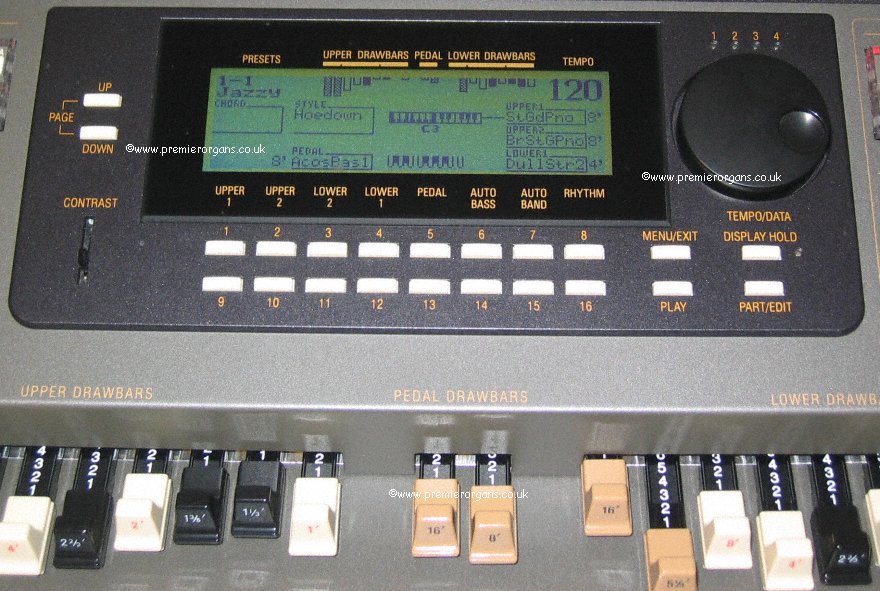

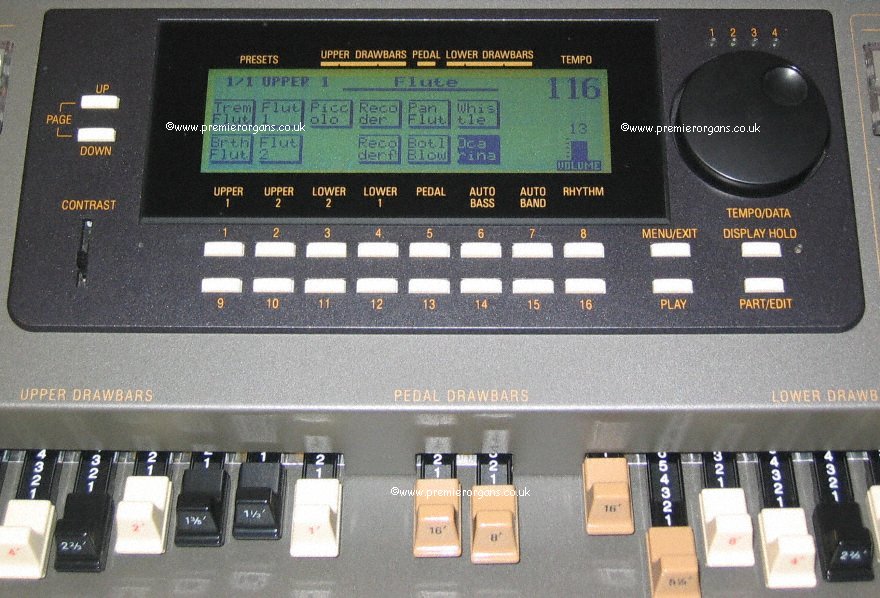

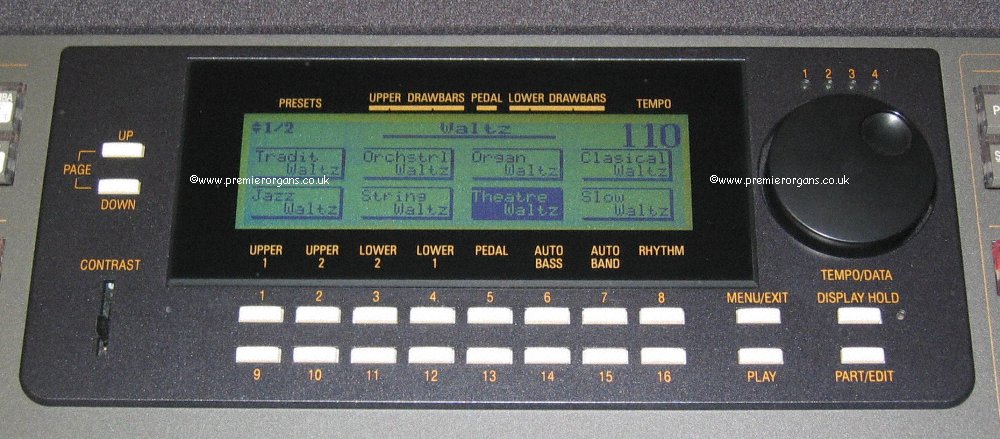

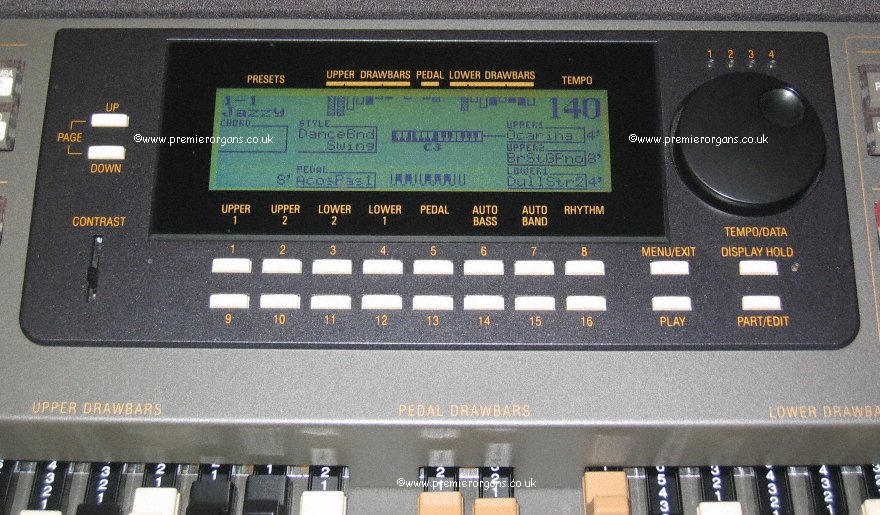

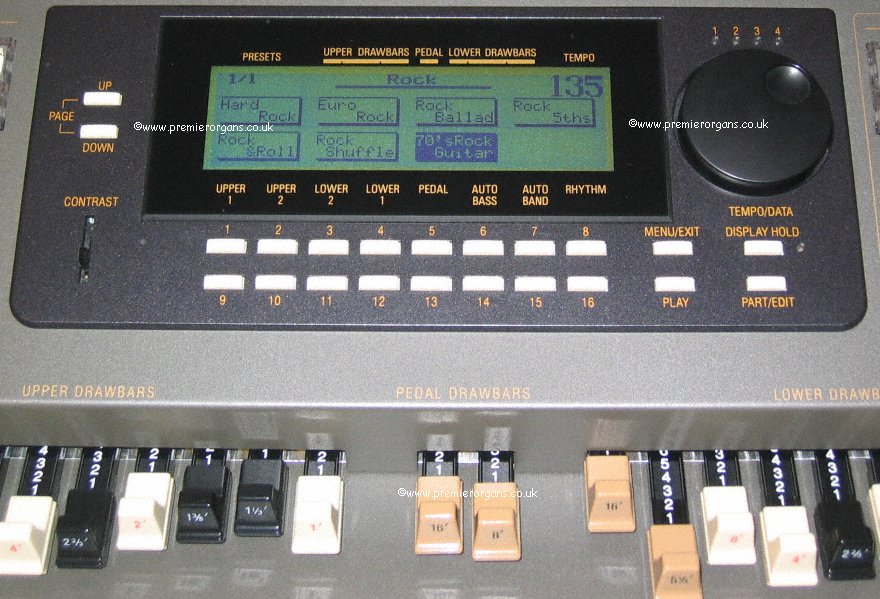

Display: 240 x 64 dots graphics LCD with LED back light

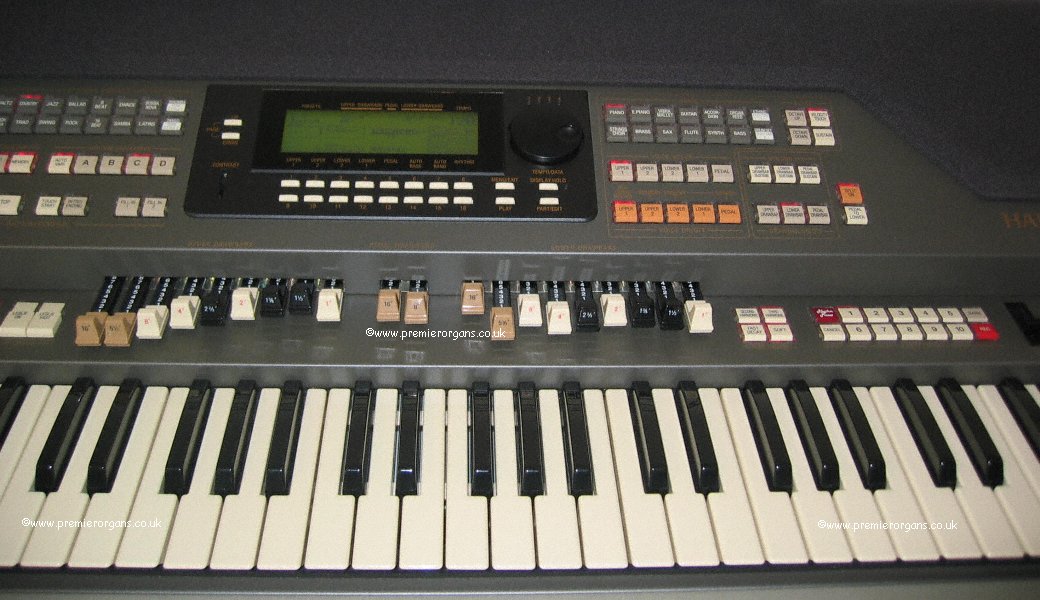

Drawbars: 9-upper, 9-lower, 2-bass

Percussion: 2nd, 3rd, soft, fast

Sound Generator: PCM Vase-II ™ & DRB Vase-II ™ digital technology

Organ Effects: leslie ( 2 rotor digital leslie, on/off, slow/fast ), vibrato/chorus ( V1, V2, V3, C1, C2, C3 )

Effects: reverb ( 8 types ), chorus ( 8 types ), S.E.S. (Sound Expansion System), echo for MIC input

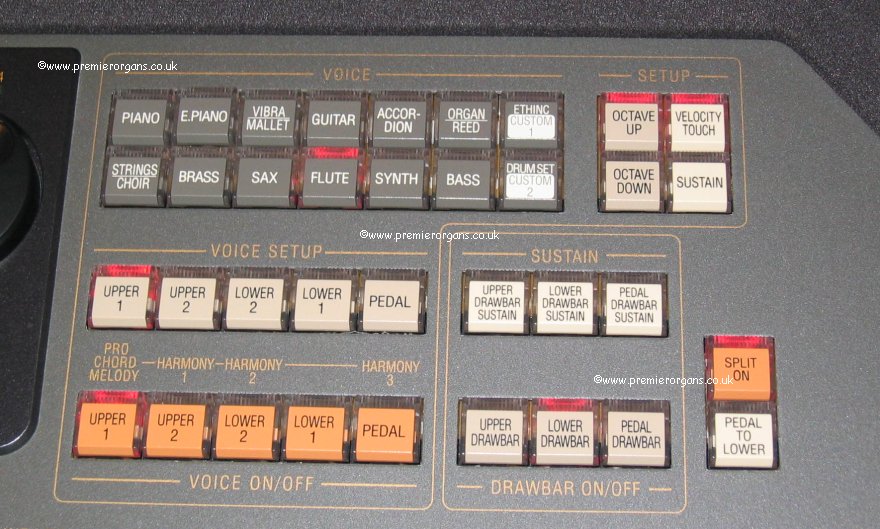

Voices: 275 PCM voices + 28 user voices , 11 drum sets

Equalizer: 2 sections (rhythm & voice , drawbar), 4 elements parametric (low, low-mid, mid-high, high)

Presets: 10 banks (10 presets each), 100 rhythm presets

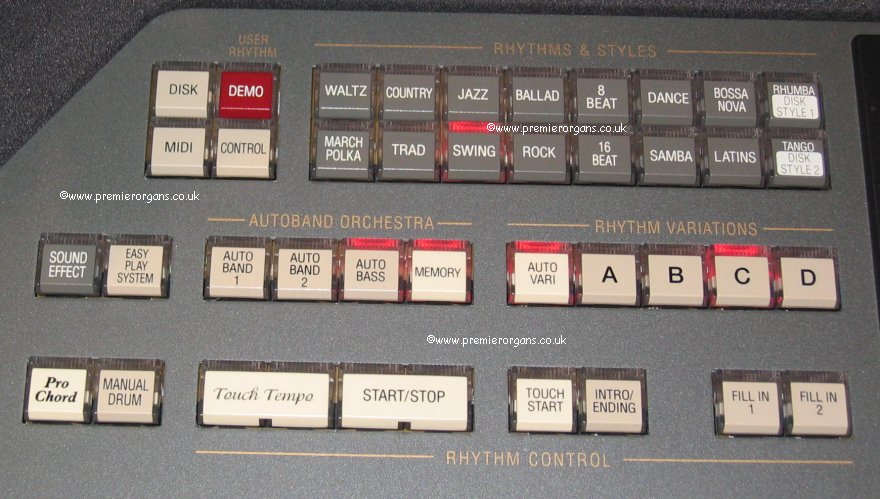

Music Styles: 100 x 4 variations, disk styles, start/stop, intro/ending, fill-in 1, fill-in 2, autoband 1, autoband 2, autobass, memory, auto-vari, touch start, touch tempo, manual drum

Pro Chord: 20

Controls: split, transpose, pitch bend, mod. wheel, tempo wheel, demo, display contrast

Volume: master volume

Disk Drive: 3,5 inch 2HD (for SMF-player, sequencer, style, set-up, upgrade)

External Memory Slot: compact flash memory card (8M-128Mbytes ) (for sequencer, style, setup)

Terminals: line out L/R, line in L/R, mic in, mic out, headphone, expression pedal (EXP-100F) with foot switch,

foot switch, ext. leslie 11-pin, computer interface (PC,MAC,MIDI IN2), MIDI IN / OUT / THRU

Speakers: 2 x woofer 13cm, 2 x tweeter 5cm

Amplifier: output 2 x 50W

Dimensions:

Accessories: music rest, AC-cord

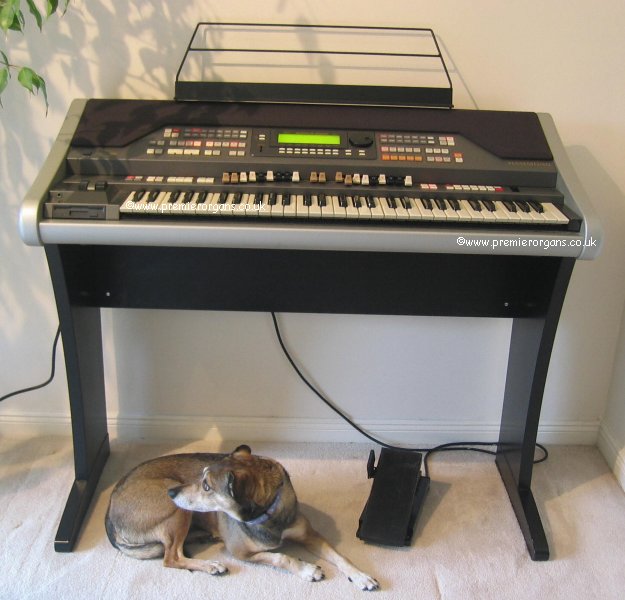

Options: upgrade-kit XE-2, MIDI pedalboard XPK-100, stand STE-1, foot switch FS-9H, expression pedal EXP-100F
